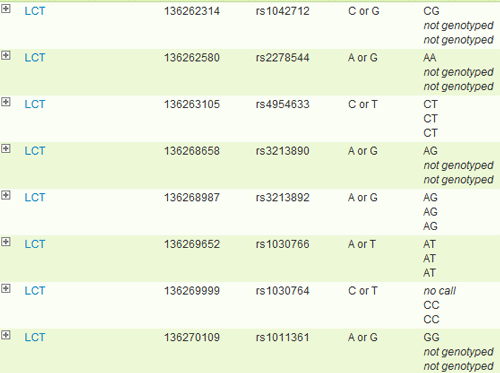

Yesterday the first batch of results from 23andMe's v3 chip came online. Instead of 550,000 SNPs you get ~1 million. The difference is pretty clear when you look at the raw SNPs. Under Account → Browse Raw Data, I can enter LCT, and this is what I see:

I'm line #2. A sibling is line #1. Looking at this sort of stuff makes it really likely I'll upgrade. My main rationale for not upgrading is that there's diminishing marginal returns for ancestry related stuff. Speaking of ancestry, let's compare my sibling's ancestry painting to my own.

In a bit of a surprise, while I'm 43% "Asian," my sibling is 40% "Asian." This is somewhat reflected in global similarity.

I was curious if the differences were v3 vs. v2 chip, so I compared two individuals of Northern European ancestry:


Northern Europe66.5666.530.03

Southern Europe66.4766.430.04

Middle Eastern66.3866.350.03

Northern Africa65.7865.680.1

Central/South Asia67.1867.140.04

East Asia67.6667.560.1



North America67.267.150.05

South America67.3367.180.15

West African63.9963.870.12

Central African6463.890.11

Eastern African64.1564.060.09

South African64.0463.930.11

There's less of a consistent difference here. So I really don't know what to think.

Northern Europe v2Northern Europe v3Difference

Northern Europe67.8267.88-0.06

Southern Europe67.7467.730.01

Middle Eastern67.1467.120.02

Northern Africa66.4266.370.05

Central/South Asia66.8866.94-0.06

East Asia65.7365.77-0.04



North America66.1166.15-0.04

South America66.0166.02-0.01

West African63.2963.210.08

Central African63.3564.24-0.89

Eastern African63.4863.430.05

South African63.3763.270.1

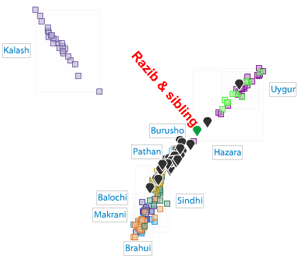

On the other hand, there's no difference when it comes to the two dimensional scatter plot which maps your position on the HGDP sample populations, global similarity advanced. Instead of looking at the total genome, remember that this is taking your genetic variation, and placing it within a position along a set of independent dimensions which emerge from the HGDP population variance. Here you're looking at the two largest components of variance, which easily shake out into discernible clusters. The scale here is not fine enough to distinguish myself from my sibling; we're basically on the same spot (the black positions are a bunch of South Asians I've shared genes with in the attempt to elucidate whether I am a genuine genetic outlier in South Asia). Overall I'm obviously of two minds here: the differences between between myself & my sibling are genuine, or, they're artifacts of the fact that I'm on v2 and they're on v3. A major reason I have to suspect that the difference of chip is important is that my sibling is genetically very close to two individuals of Northern European ancestry...who happen to be two other people who I'm sharing with who are v3. Additionally, these two people seem to be suspiciously genetically close as well. v3's cluster with v3's far more than random expectation.

But then I went to family inheritance. To the left you can see which regions where my sibling & I exhibit identity by descent. Since I do not seem to be inbred (confirmed by checking for runs-of-homozygosity in my raw genotype), my parents contribute different homologs, the distinct genes inherited from their own parents, to their offspring. Imagine that the paternal genotype is Pp and and maternal is Mm, where upper case is the copy inherited from the mother, and the lower case inherited from the father (our common grandparents). The offspring could be: PM, Pm, pM, pm. Siblings have an expectation of 0.50 relatedness, but because of the variance there's some wiggle room. If the Southeast Asian ancestry which we seem to have is recent enough, then recombination may not have broken up the ancestrally informative regions of the genome which are concentrated on particular homologs inherited from each parent (in particular, I have a suspicion that my father's genome is a mosaic of conventional Bengali along with recent Southeast Asian admixture; we'll know in a few weeks). Variance of inheritance of these regions of the genomes may then explain the fact that I am "more Asian" than my sibling. All that being said, I do find it of interest that while I have "wet earwax" and the associated genotype (in heterozygote form), my sibling has the genotype for dry earwax, which is typically found in East Asia (though the minor allele with recessive expression is found at non-trivial proportions across South Asia). Such issues of personal hygiene are not ones which most have inquired of, so this was news to me, though not surprising given my heterozygosity on this locus. Addendum: For Western Europeans who are on v3, are you finding trace amounts of Asian? Previous gene sharing suggests that ~1% Asian is not uncommon among Finns (and also Russians, but this can be attributable to recent Tatar admixture), but I haven't seen this among other Europeans without recent non-European admixture. I ask because a friend on v3 who is adopted, but presumably of Western European ancestry (he was told the putative ethnicities of his biological parents), has 1% Asian. Also, HAP is accepting v3 for South Asians, Iranians, Burmese, and Tibetans!
